Ultrasonic Lace Sewing Machine
Parameter
Item | Ultrasonic Lace Sewing Machine(CE qualified) |
Model | TC-60 |
Power Source | 220V /110V |
Inout Power | 2000W (3 power adjustable) |
Output Frequency | 20KHZ |
Working Speed | 0-20M/minute |
Roller Size | 23MM-60MM Width ?50MM |
Dimension of packing | 127CM *60CM*130CM |
Gross Weight | 140KG |
Pressure System | Air type or manual type |
Feature

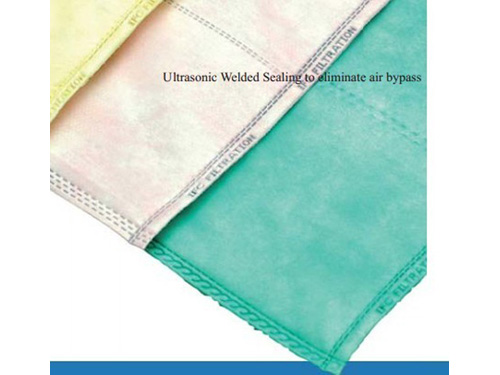

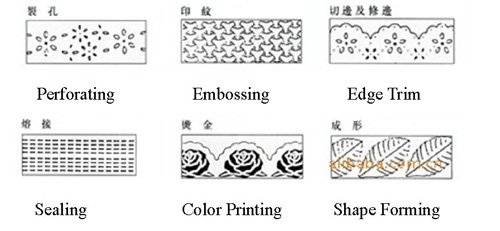

1. Use ultrasonic vibration energy to cut, weld, seam sealing, perforating, ultrasonic embossing, stitching, slitting, forming,etc
2. Eliminating traditional needle and thread,reduce material cost
3. No dissipated edge, wrinkle and shrinkage. could print color on the laces with colored paper.
4. Continuous working for mass production
5. No smoke, spark and danger during operation
6. Analogue and Digital circuit ultrasonic generator system for choice and different application
7. Imported accessories and advanced electronic circuit make sure stable performance

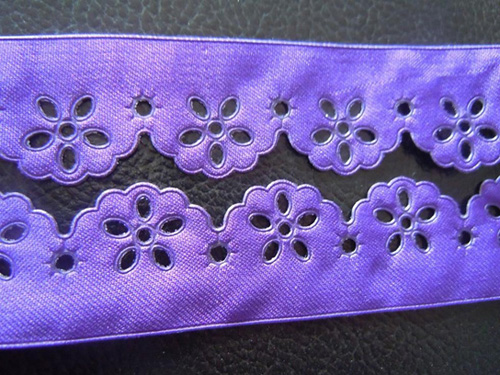

8. Thousands of pattern roller designs available,easily to replace
Functions
Suitable material
Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven,satin,
Thermo plastic films.and other synthetic fibre material
Application

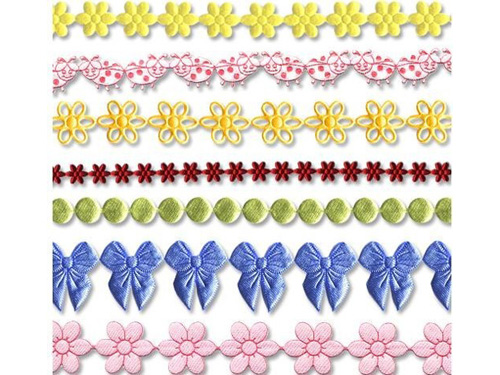

Ultrasonic Lace sewing Machine is widely used in production of lace clothing,synthetic filter bag, surgical gown , hair decorations,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,pocket filter bag,non woven bag making,shower curtain,pp woven sealing,etc
