TC-DT Single Head Handle Welding Machine

  • Technical parameters

Description

When 220V or 110V voltage is connected to ultrasonic spot welding machine generator,the output of ultrasonic frequency is raised to 20KHz.This current  turns electric energy into mechanical vibration wave through ultrasonic booster  and output from ultrasonic horn,finally the various patterns can be formed on fabric which is between welding pattern mold and ultrasonic horn.


Specification

Item

Ultrasonic Spot Welding Machine( Single Head)

Voltage

220V/110V

Inout Power

1200W

Frequency

20KHZ

Working Speed

2-3 seconds/welding

Pattern Size

20mm*20mm

Packing Size

127*60*130CM

Gross Weight

100KG


Features

1. Use imported piezoelectric ceramics with more power, and some electrical core parts are imported components to make life longer.

2. Simple operate with high efficiency, save the labour cost.

3. Lower failure rate, easy maintenance,Friendly to operator

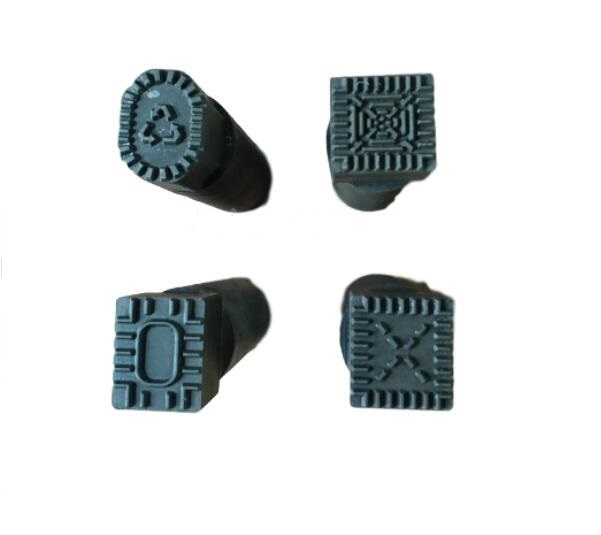

4. Many production can be achieved by changing the pattern design mold



Application
Non woven bag soft handle , artificial leather LOGO embossing,
surgical gown belt,velcro,etc
