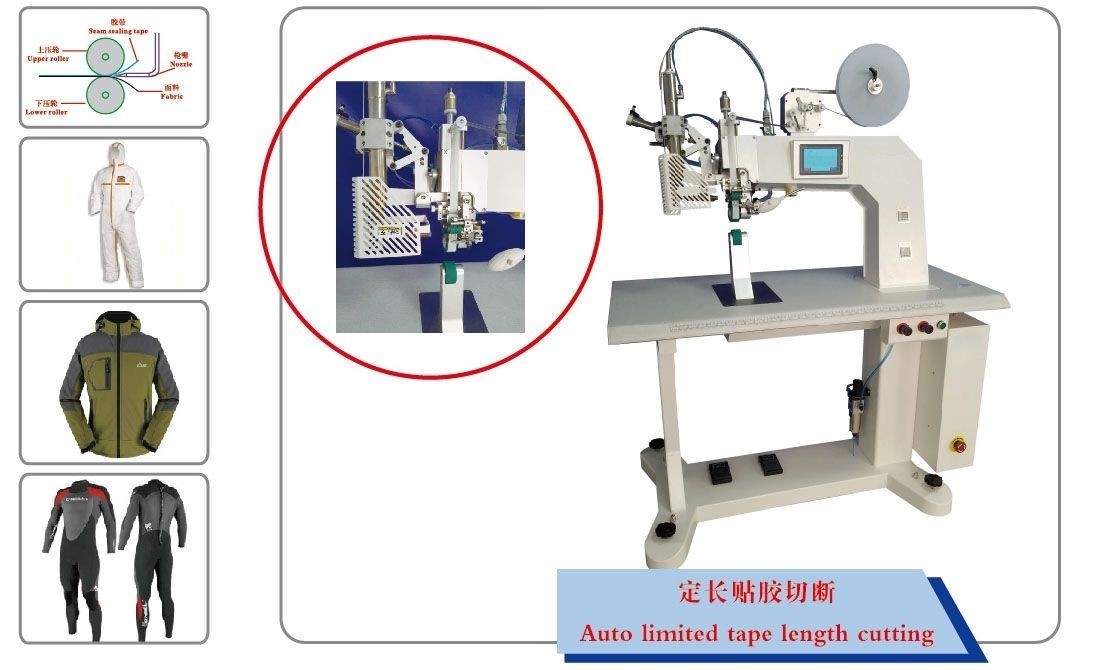

Hot Air Tape Sealing Machine
Technical Parameter
Model | TC-A6+ |
Voltage | AC 220V |
Power | 2500W |
Temperature | Up to 700℃ |
Speed | 1-23m/minute |
Pressure | 0.35-0.5Mpa |
Nozzle Width | 22mm |
Dimension | 1200*600*1550mm |
Gross Weight | 200KG |
Features of Hot Air Tape Sealing Machine
1. Suitable for jacket,swimming suit,protective and other high quality garments seam sealing
2. Complex nozzle move function makes nozzle swing more fluent
3. Different speed of up and down roller solves the problems of wrinkle on tapping
4. High precise and colorful touch screen control
5. Auto limited tape length cutting function saves 15% tape
6. Variable speed on tape feeding function have the tapping more smooth without wrinkle on both begining and ending
Product Application: Multifunction Hot Wedge & Hot Air Welding Machine
1. The most versatile: equipped with three arms(quick arm, vertical arm and horizontal arm), easy and fast changeover.
2. PLC/HMI easy operation touch screen , English and Chinese Interface.
3. Precise Temperature control, max 750 ' C;
4. Suitable for wide range material sealing;
5. Quick, repeatable head adjustments for precision welding;
6. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc
7. Available in hot wedge, hot air or equipped with both for optimal product production.
8. High Quality Imported components, Japan Panasonic PLC, OMRON, AIRTAC Pneumatic Parts, etc
9. Built for multiple-shift production, solid-steel structure design can last for multiple decades.
10. Designed for 24 hours continuous working.
